Steel Structure Floor Deck Roll Forming Machine Ceiling Use High Efficiency

Name: Steel Structure Floor Deck Roll Forming Machine Ceiling Use High Efficiency
Brand: Lvchangda
Price: 1 USD

Brand Name : Lvchangda

Model Number : MZ2017083001

Certification : ISO SGS CE

Place of Origin : Jiangsu, China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20 Sets per month

Delivery Time : 45 working days after receiving 30% deposit

Packaging Details : Nude package in 40' container

Condition : New

Use : Ceiling

Type : Roll forming machine

Name : Metal deck roll forming machine

Warranty : 12 months

Raw material : Steel

Business type : Manufacturer

Color : Optional

Control : PLC Panansonic

Material width : as the final design

Contact Now

Steel structure metal deck roll forming machine

Product introduction

This machine can be customized according to your requirements, nomally it is use in celing in construction, the furred ceiling, it is highly automatic and can adjust different sizes.

The Working flow

Decoiler---feeding---roll forming---hydraulic cut to length---output table

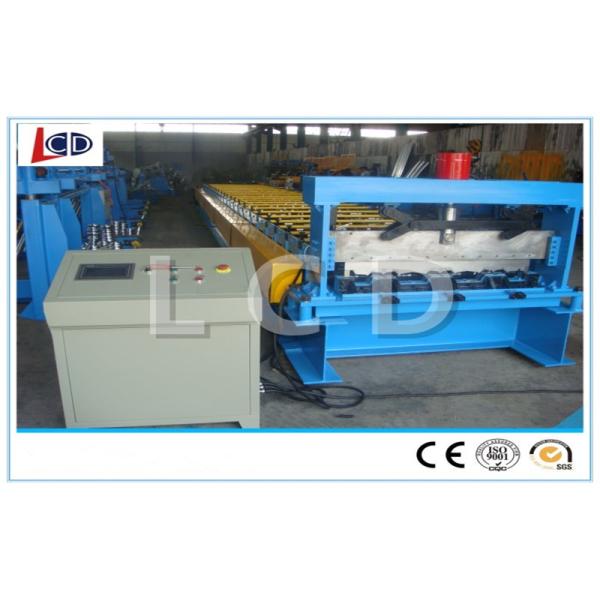

Steel Structure Floor Deck Roll Forming Machine Ceiling Use High Efficiency

Character of main structure:

1). structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.

2). All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3). We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4). It is very easy to install the equipment and suitable for producing in the factory.

5). Low noise with high efficiency.

Main specifications

Name	Specification
Dimensions (LWH)	1400015001300mm
Main power	22kw
Hydraulic power	4kw
Groups of roller stations	24 groups
Working speed	10-12m/min
Diameter of shaft	95mm
Voltage	380V 50Hz 3Phases
Machine body	450mm H-model Steel
Middle plate	22mm steel
Weight	9 ton
Material of the shaft	45# steel quenching treatment
Material of the rollers	45# steel quenching treatment
Raw material	Pre-painted plate/ galvanized plate, 0.5-1.2mm.
Accessories included	Hydraulic punching
driving mode	chain
material of cutting	Cr12 mould steel with quenched,
working time	24 hours

Pictures for reference

Steel Structure Floor Deck Roll Forming Machine Ceiling Use High Efficiency
